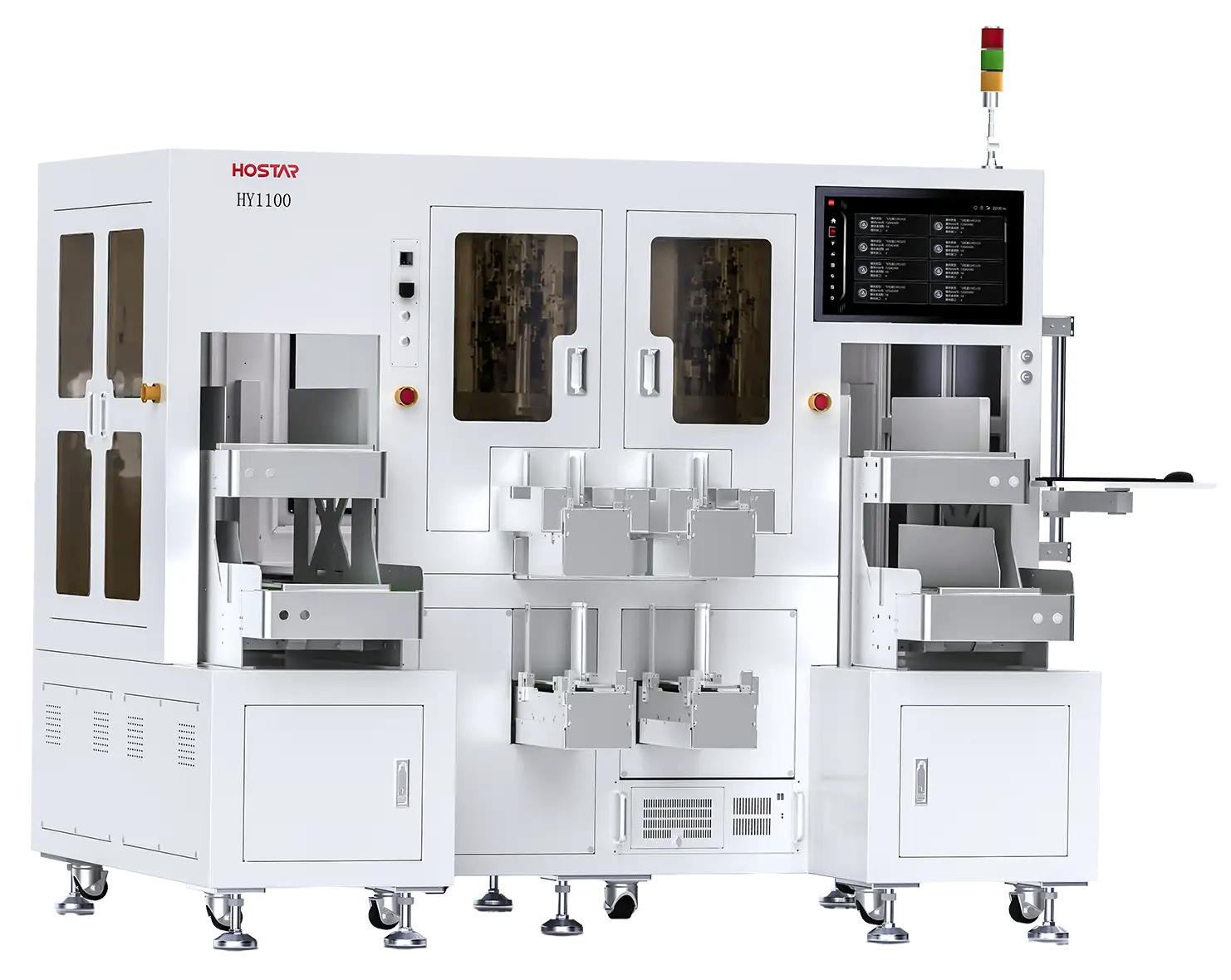

Tray-to-Boat Transfer Machine
Applicable to FCBGA Tray to Boat substrate exchange
Adopting automatic inline design, enabling automatic substrate changeover function for Jedec Tray & Boat carrier
Equipped with surface defect inspection of both sides
Applicable product size: 7x7~130x130 mm
Product placement accuracy: ± 80 µm
Machine X-Y axis accuracy: ± 25 µm
In-feed CCD for product reverse orientation detection
Max. carrier boat size: 160x320 mm
Automatic pitch adjustment for pick-up nozzles
Substrate top-and-bottom-side surface defect inspection
Substrate top-side chipping ≥ 0.4×0.4 mm detectable
Substrate bottom-side chipping ≥ 0.2×0.2 mm detectable
